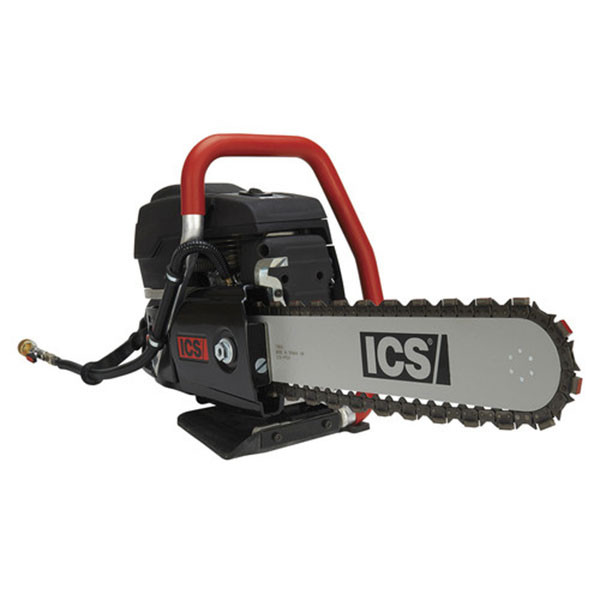

ICS 695XL-16 GC Gas Power Cutter Pkg
Item #: 575865
With 16 in/40 cm Guidebar & FORCE3 Chain.
Allow 1-2 week shipping time.
695XL-16 GC Gas Saw Package includes:
- 695XL GC Powerhead (Item# 581192)
- 16 inch/40 cm FORCE3 guidebar (Item# 632196)
- 16 inch/40 cm (70 Drive Links) FORCE3 chain (Item# 584294)
* Easily convert to run the full line of FORCE4 & PowerGrit diamond chains with a quick switch of the drive sprocket and guidebar.
The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction and concrete professionals.
- Use on concrete, stone, masonry, brick, block and more
- Most versatile gas power cutter
- Piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- Easy-to-tune carburetor
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|Gas Concrete Saw|
|Engine Type||2-stroke, single cylinder, air cooled|
|Displacement||5.7 cu in (94 cc)|
|Engine Speed Max||9,300 +/- 150 rpm (max)|
|Engine Speed Idle||2,700 +/- 100 rpm|
|Fuel Mix Ratio||50:1 (2%) fuel-to-oil|
|Fuel Capacity||0.26 gal (1 L)|
|Weight, Saw Only||21 lbs (9.6 kg)|
|Cutting Depth||up to 16 in (40 cm)|
|Bar Length||16 in (40 cm)|
|Noise Level (Power)||115 dB(A), (Kwa = 1.0 dB(A))|
|Chain Length||16 in (40 cm)|
|Noise Level (Pressure)||104 dB(A), (K=1.0 dB(A))|
|Horsepower||6.4 hp (4.8 kW)|
|Front Handle Vibration, ahv eq Concrete Cutting||3.6 m/s2 (K=0.2 m/s2)|
|Rear Handle Vibration, ahv eq Concrete Cutting||3.1 m/s2 (K=0.2 m/s2)|
|Front Handle Vibration, ahv eq Pipe Cutting||5.62 m/s2 (K=0.2 m/s2)|
|Rear Handle Vibration, ahv eq Pipe Cutting||5.28 m/s2 (K=0.2 m/s2)|
|Water Supply (Min)||20 psi (1.4 bar)|
|Water Flow Req (Min)||2 gpm (8 lpm)|
|Unit of Measure||Each|
