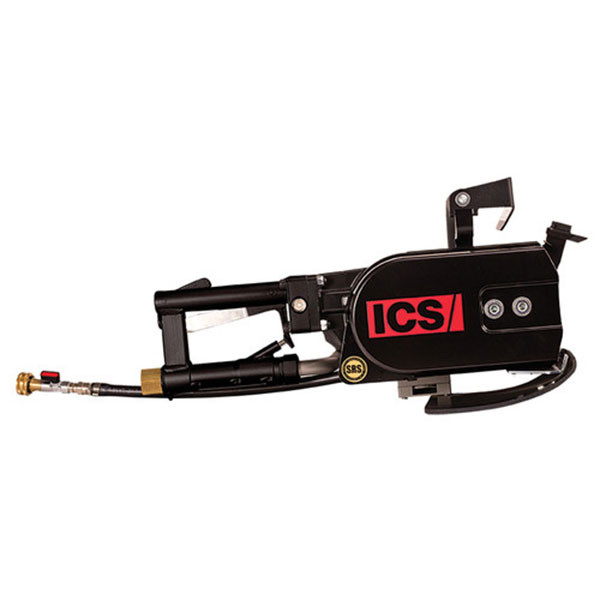

ICS 701-A Powerhead, Pneumatic
Item #: 573511
$4,809.75
Allow 1-2 week shipping time.
701-A Pneumatic Saw. Powerhead only. Guidebars and Diamond chain available separately.
The ICS Pneumatic Saw is designed to cut through walls, floors, pipe, and columns in a single pass.
The unique versatility of a power cutter includes the ability to make deep plunge cuts, perfect corners, a single cut from one side, and an endless variety of irregular shapes.
Cut with ease, speed, and portability through reinforced concrete, brick, block, concrete pipe, ductile iron, cast iron, natural stone, and more.
- No fumes
- Can be powered with commonly available power sources
- Reliable and easy to maintain
- High torque output for tough cutting jobs
- ideal for confined spaces and indoor use
- *WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Pneumatic Concrete Saw | |||
|---|---|---|---|
| Motor Lubrication | Resin and acid-free SAE 5 W to SAE 10 W oil | ||
| Air Motor Power | 6.5 hp (5 kW) | ||
| Air Supply Reqs (Max) | 90 psi (6 bar) | ||
| Operating Speed (Avg Free Running) | 5700 rpm | ||
| Operating Speed (Avg Free Running with Chain) | 4,900 sfm | ||
| Chainsaw | |||
|---|---|---|---|
| Power Type | Pneumatic | ||
| Use Application | HDPE Asphalt Ductile Iron Brick Cast Iron Block Concrete Masonry PVC Stone AC Pipe |
||
| Weight, Saw Only | 29 lbs (13 kg) | ||
| Cutting Depth | up to 25 in (63 cm) | ||
| Bar Length | 10 in (25 cm) 15 in (38 cm) 20 in (50 cm) 25 in (63 cm) |
||
| Noise Level (Power) | 113 dB(A), (Kwa=0.5 dB(A)) | ||
| Chain Length | 10 in (25 cm) 15 in (38 cm) 20 in (50 cm) 25 in (63 cm) |
||
| Horsepower | 6.5 hp (5 kW) | ||
| Front Handle Vibration, ahv eq Concrete Cutting | 5.09 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Concrete Cutting | 5.07 m/s2 (K=0.2 m/s2) | ||
| Front Handle Vibration, ahv eq Pipe Cutting | 4.58 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Pipe Cutting | 4.43 m/s2 (K=0.2 m/s2) | ||
| Water Supply (Min) | 20 psi (1.4 bar) | ||
| Water Flow Req (Min) | 2 gpm (8 lpm) | ||
| General | |||
|---|---|---|---|
| Unit of Measure | Each | ||
