Item #: 566113

$4,579.75

Allow 1-2 week shipping time.

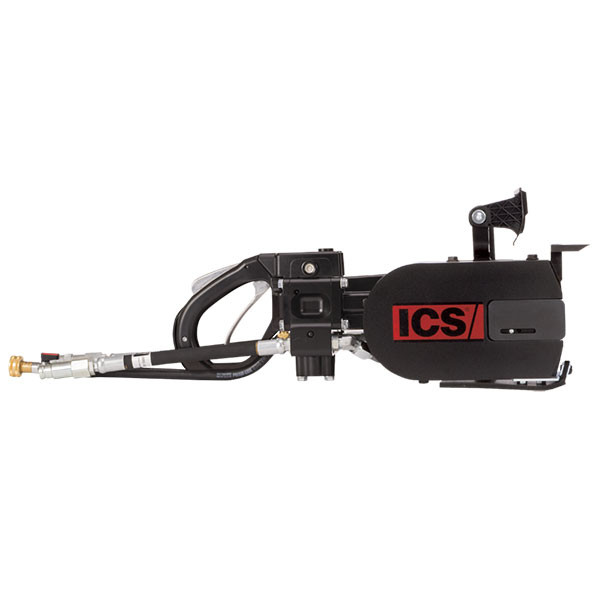

The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology. From the redesigned, more durable rear handle, to the easy to replace drive sprocket, this power cutter is engineered to stand up to your toughest jobs. In a package that exceeds industry standards, this sleek powerhouse is packed with features designed to make it work as hard as you do.

  • Cuts within 4 mm of wall
  • Redesigned rear handle offers improved ergonomic cutting and greater durability
  • 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
  • Drive sprocket design allows for quick replacement in the field
  • Universal motor across 890 series power cutter platforms
  • Available with 30 cm and 2.5 m hoses, 1 cm quick disconnects included for convenience
  • New secondary water shut off valve for flow metering and water conservation
  • Product specification data shown is rated based on maximum input conditions and efficiency assumptions and may vary dependent on power supply.
  • *WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Hydraulic Concrete Saw
Flush Cut? Yes
Hose Whip Length 1 ft (30 cm)
Hydraulic Supply (gpm) 8 gpm (30 lpm)
Hydraulic Supply (psi) 2,500 psi (172.5 bar)
Operating Speed (Avg Free Running with Chain) 5,500 sfm
Chainsaw
Power Type Hydraulic
Use Application HDPE
Asphalt
Ductile Iron
Brick
Cast Iron
Block
Concrete
Masonry
PVC
Stone
AC Pipe
Weight, Saw Only 23.5 lbs (10.6 kg)
Weight with Bar and Chain 27.3 lbs (12.4 kg) with 15 in (38 cm) bar and chain
Cutting Depth up to 25" (63 cm)
Bar Length 10 in (25 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
Noise Level (Power) 107 dB(A), (K=0.2 dB(A))
Chain Length 10 in (25 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
Noise Level (Pressure) 98 dB(A), (KK=0.7 dB(A))
Torque 7 ft-lbs (9 Nm)
Horsepower 6 hp (4.5 kW)
Front Handle Vibration, ahv eq Concrete Cutting 2.0 m/s2 (K=0.1 m/s2)
Rear Handle Vibration, ahv eq Concrete Cutting 6.0 m/s2 (K=1.4 m/s2)
Front Handle Vibration, ahv eq Pipe Cutting 4.6 m/s2 (K=0.1 m/s2)
Rear Handle Vibration, ahv eq Pipe Cutting 4.8 m/s2 (K=0.3 m/s2)
GPM 8 gpm (30 lpm)
Water Supply (Min) 20 psi (1.4 bar)
Water Flow Req (Min) 2 gpm (8 lpm)
General
Unit of Measure Each
